Soft Cut Gaskets
Description
Die-cut from soft gasket materials including CNAF, CAF, and ceramic fibers.
Our soft cut gaskets are manufactured to the highest quality standards using premium materials. Each gasket is designed to provide reliable sealing performance in demanding industrial applications.
Available in various sizes and configurations to meet your specific requirements. Contact our engineering team for custom solutions and technical specifications.
Material Grades
| Grade | Application | Temp. & Pressure |
|---|---|---|
| IS2712/1998 W/1 | Water, steam and some chemical high service conditions | Up to 350°C and 130 Bar |
| IS2712/1998 W/2 | Water, steam and some chemical medium service conditions | Up to 350°C and 40 Bar |
| IS2712/1998 W/3 | Oils – high service conditions | Up to 350°C and 130 Bar |
| IS2712/1998 O/2 | Oils – medium and nominal service conditions | Up to 300°C and 80 Bar |
| IS2712/1998 A/1 | Acids – highly corrosive conditions | Up to 250°C and 100 Bar |
| CAF White | General industrial sealing applications | Up to 200°C and 25 Bar |
| CNAF Premium | Steam, hydrocarbons and refinery service | Up to 400°C and 100 Bar |
| PTFE Sheet | Chemical plants and corrosive media | Up to 260°C and 20 Bar |
High Quality Materials
Manufactured using premium grade materials for superior performance.
Proven Reliability
Tested and proven in thousands of installations worldwide.
Custom Configurations
Available in custom sizes and specifications to meet your needs.
Global Standards
Manufactured according to international standards and specifications.

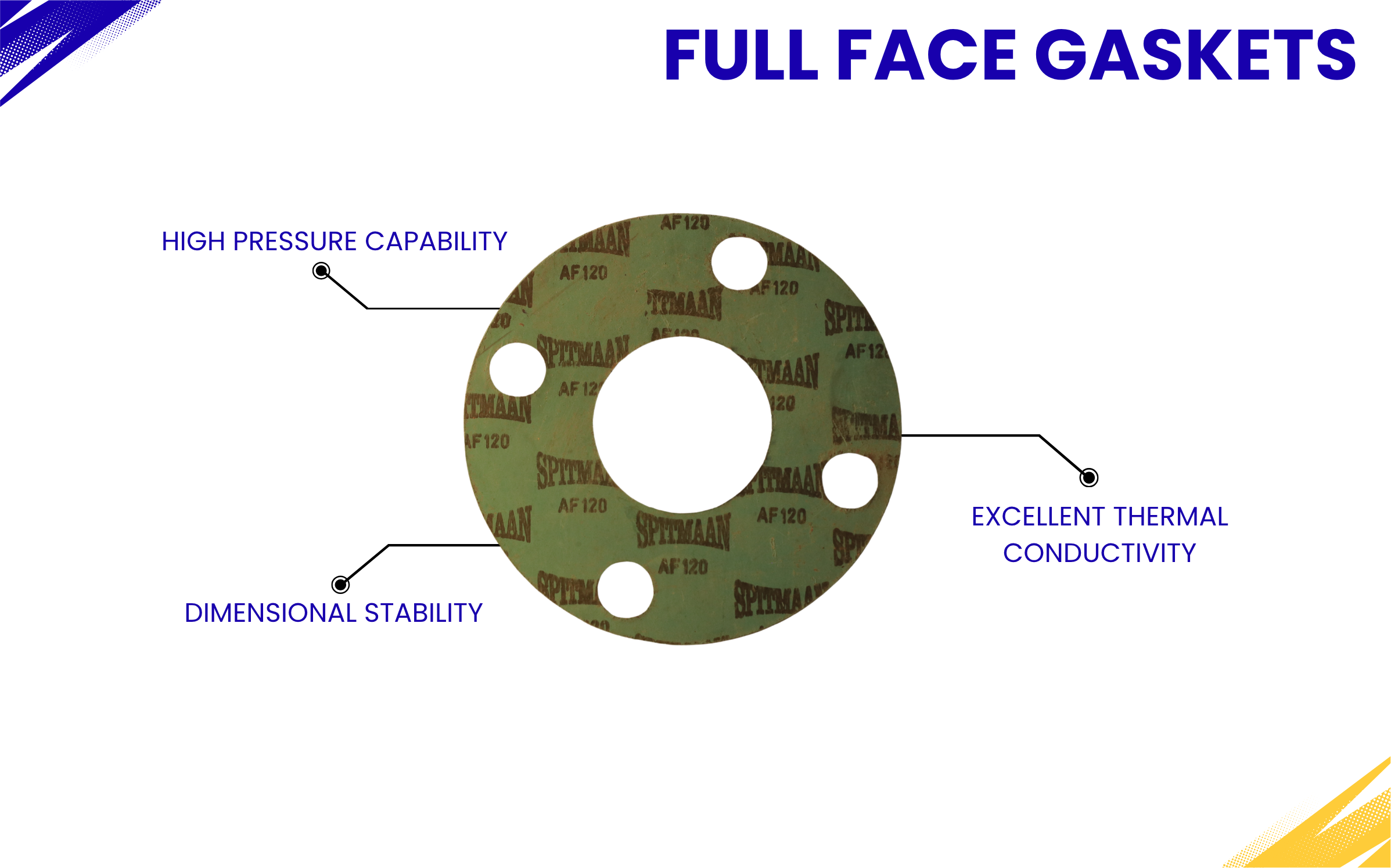

Full Face Gaskets (Flat Face)
A Full Face gasket covers the entire flange surface and includes pre-punched bolt holes. These are specifically designed for flat-face flanges and are commonly used in water pipelines, HVAC systems, and low-pressure chemical lines.

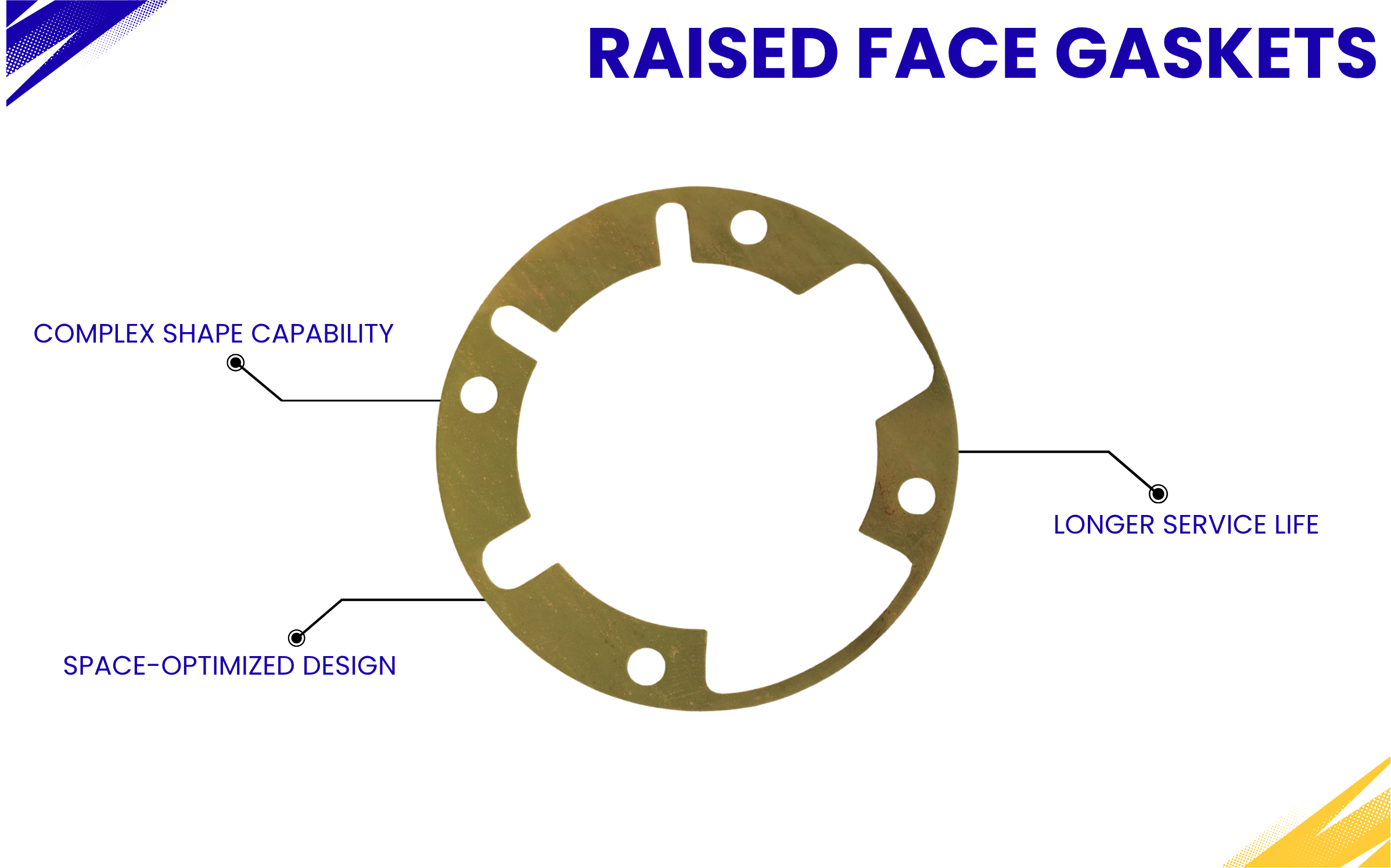

Raised Face Gaskets (Flat Ring)
A Raised Face gasket fits entirely inside the bolt circle and seals against the raised portion of the flange. Also known as Inner Bolt Circle (IBC) gaskets, they are preferred for oil and gas pipelines, steam distribution systems, and process plants.

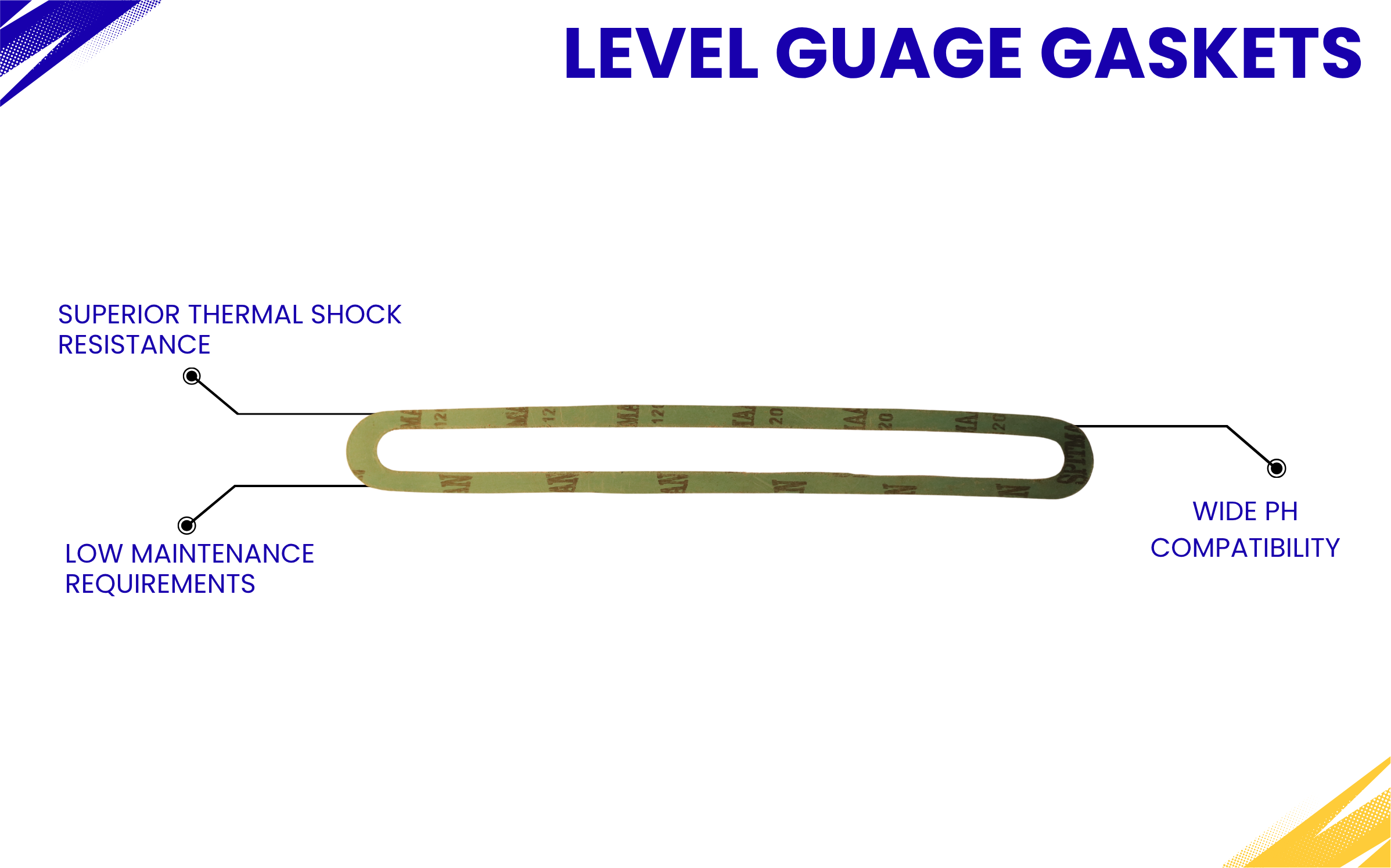

Level Gauge Gaskets
Level gauge gaskets are installed between the gauge glass and the main body of level gauges to prevent liquid leakage. Depending on service conditions, these are available in non-asbestos, graphite, and PTFE materials.

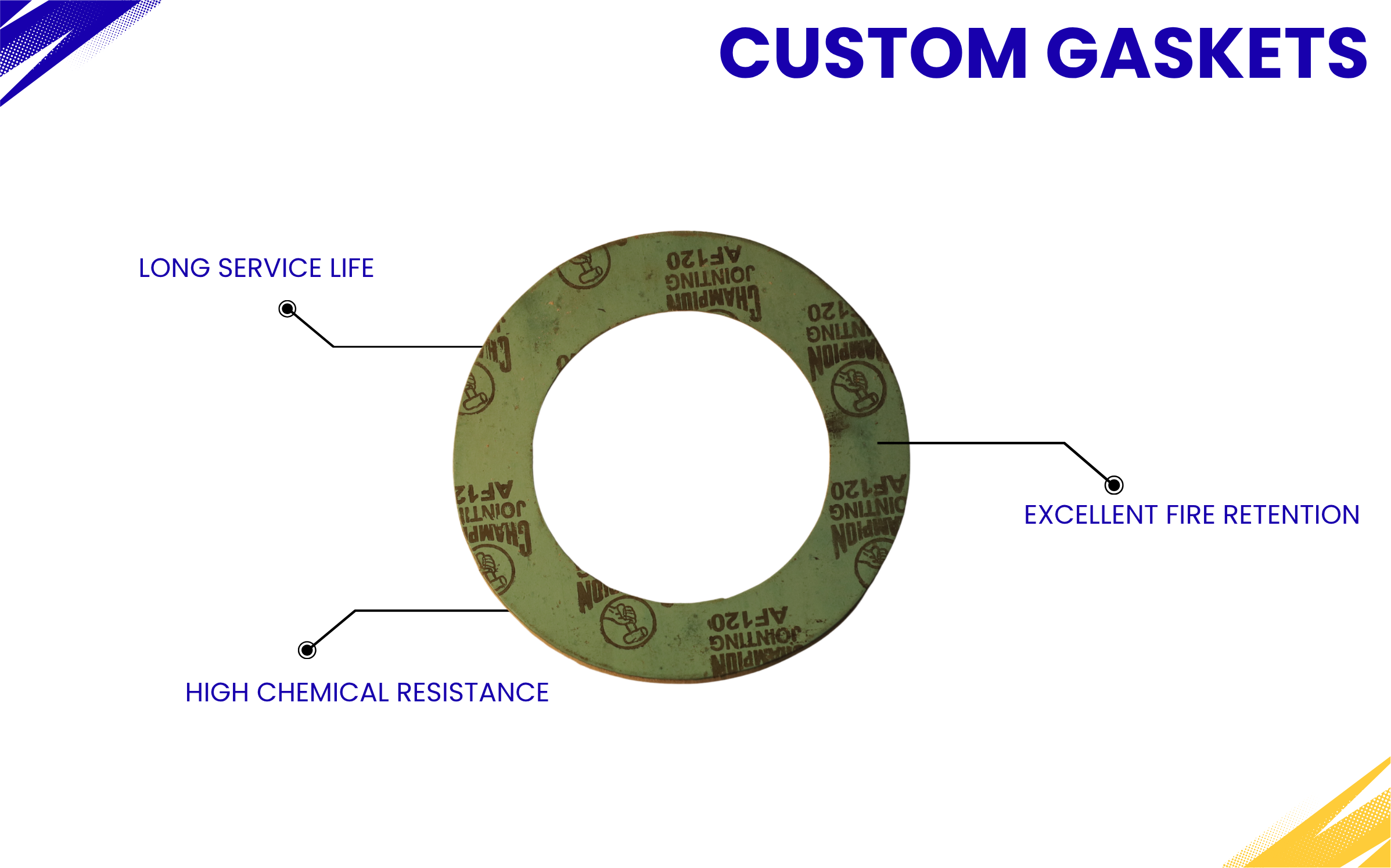

Customized Gaskets
We manufacture custom CNAF / CAF gaskets for non-standard sizes with precision cutting and strict dimensional tolerances as per customer requirements.
Typical Applications
- • Oil and gas
- • Boiler and pipelines
- • Heat exchangers
- • Pharmaceutical
- • Pumps and Compressors
- • Cement industries
- • Ship building
