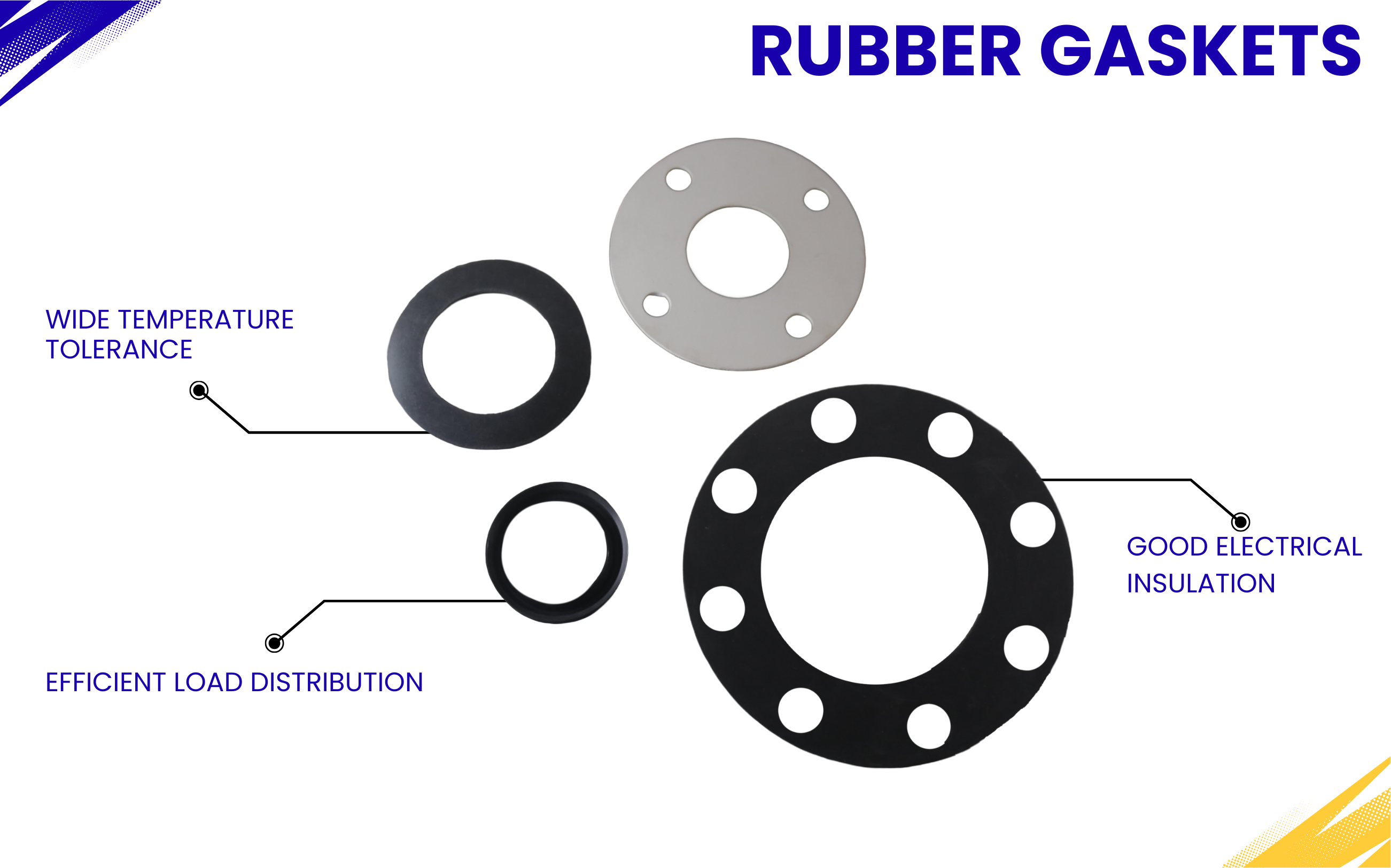

Rubber Gaskets
.svg)
Rubber gaskets are the most cost-effective sealing material and are widely used across various industries. They offer excellent flexibility and compression properties, making them ideal for low to medium pressure applications.
We offer a complete range of elastomeric gasket materials including Natural Rubber, Neoprene, Butyl, EPDM, Nitrile (NBR), SBR, Silicone, Vinyl, and Viton (FKM). Each material is selected based on the specific requirements of temperature, pressure, and chemical compatibility.
Available in various thicknesses, sizes, and configurations including full-face, ring type, and custom-cut shapes.
Typical Applications
- • Water treatment plants
- • Food and Beverage
- • Oil and Gas
- • Petrochemical
- • Pumps, Motors, Compressors and other machinery
- • Aerospace
- • Automotive
Types

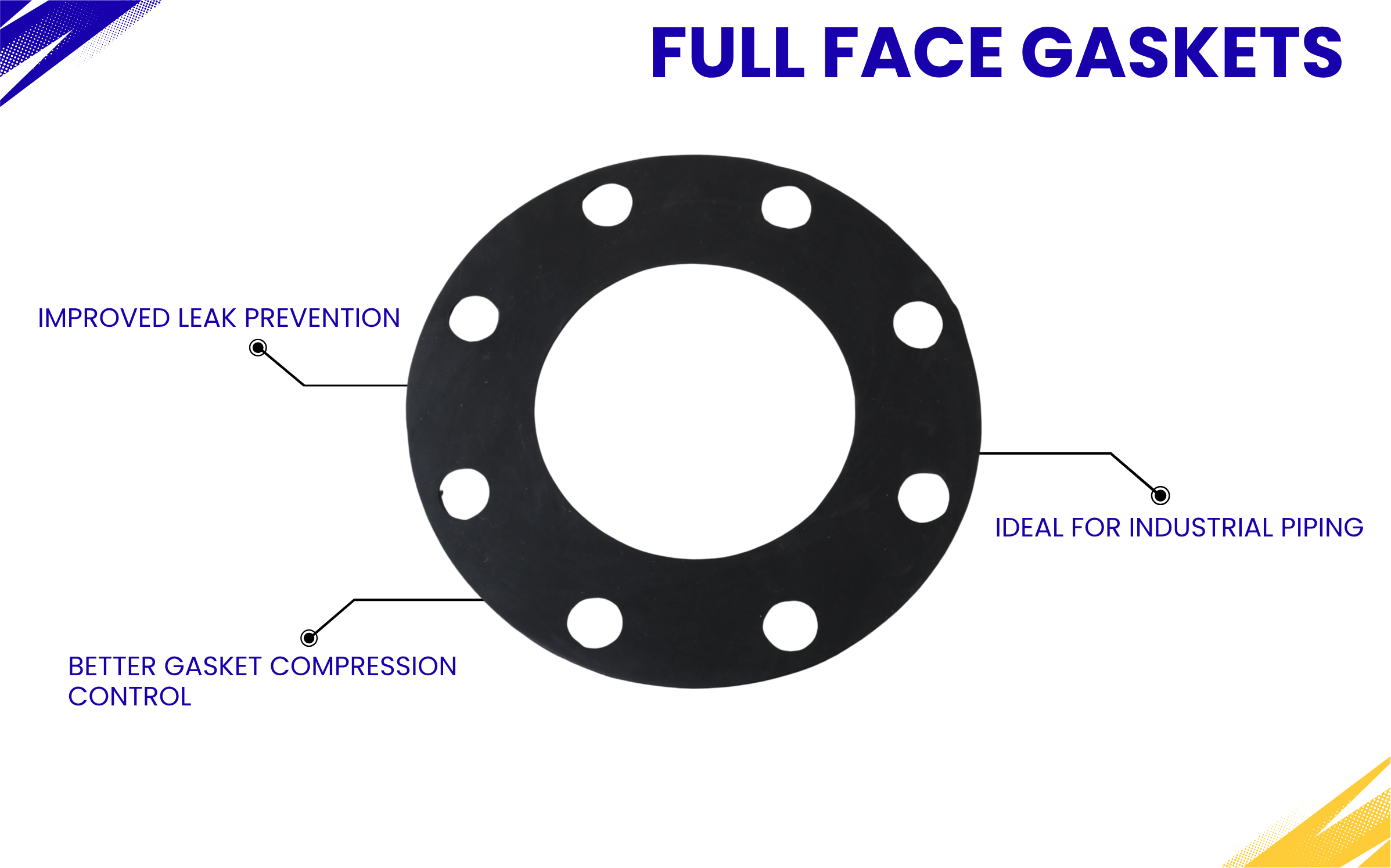

Full Face Rubber Gaskets (Flat Face)
A Full Face gasket covers the entire flange surface and includes pre-punched bolt holes. Designed specifically for flat-face flanges, these are preferred for water pipelines, HVAC systems, and low-pressure chemical lines.
Raised Face Rubber Gaskets (Flat Ring)
A Raised Face gasket fits entirely inside the bolt circle and seals against the raised portion of the flange. Also known as Inner Bolt Circle (IBC) gaskets, these are ideal for oil and gas pipelines, steam systems, and process plants.
O Rings
O-rings are circular sealing elements with circular cross-sections and are mainly used in static sealing applications.
U Seals
U-seals have a U-shaped profile with sealing lips that are activated or enhanced by internal pressure. Widely used in hydraulic cylinders, pumps, agricultural machinery, automotive engines, appliances, and door/window sealing.
Customized Rubber Gasket
We provide custom rubber gaskets manufactured for non-standard sizes. These are precision-cut or molded to meet exact dimensional tolerances as per customer requirements.
Rubber Material Specifications
| Rubber Type | Temperature Range | Pressure Rating | Typical Colour |
|---|---|---|---|
| Nitrile (NBR) | -40°C to 120°C (-40°F to 248°F) | Moderate | Black |
| Neoprene | -50°C to 120°C (-58°F to 248°F) | Moderate | Black |
| SBR | -40°C to 100°C (-40°F to 212°F) | Low to Medium | Black or Red |
| EPDM | -50°C to 150°C (-58°F to 302°F) | Low to High | Black, White (Food Grade) |
| Viton | -20°C to 200°C (-4°F to 392°F) | High | Black or Dark Green |
| Butyl | -50°C to 130°C (-58°F to 266°F) | Moderate | Black |
| Natural | -60°C to 80°C (-76°F to 176°F) | Moderate | Black or Off-white |
| Silicone | -60°C to 230°C (-76°F to 446°F) | Low to Medium | Translucent White, Red, Orange |
